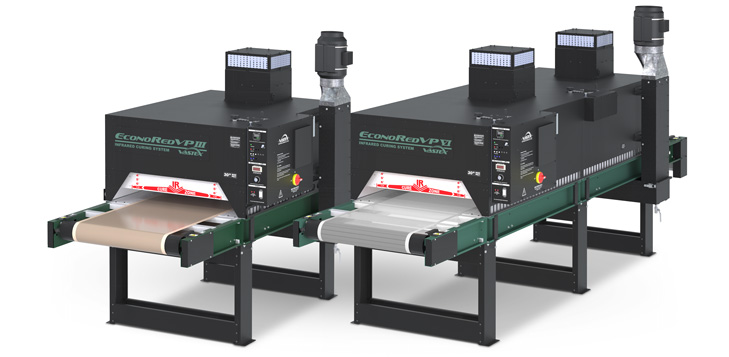

The capacity (belt speed) of LittleRed®, EconoRed™, and BigRed® 4D Series (shown) conveyor ovens can be doubled or tripled as new or when needs increase by simply adding one or two modular heating chambers and extending the conveyor belt. This eliminates the need to invest in a larger oven than you need at the onset, and avoids the high cost of purchasing a new oven when your needs increase.
| MODEL | ER-VI-30 | ER-VI-54 | ER-VI-78 |
|---|---|---|---|
| Heater Warranty | 5 Year | 5 Year | 5 Year |
| Defect Warranty | 2 Year | 2 Year | 2 Year |
| Belt Speed | 3-36 FPM* (0.9-11 MPM) | 3-36 FPM* (0.9-11 MPM) | 3-36 FPM* (0.9-11 MPM) |
| Exhaust (Free Air) | 2 @ 380 CFM (10.7 CMM) | 2 @ 550 CFM (15.6 CMM) | 2 @ 700 CFM (19.8 CMM) |
| Exhaust Diameter | 2 @ 8" (20.4 cm) | 2 @ 8" (20.4 cm) | 2 @ 8" (20.4 cm) |
| Overall Length | 159" (404 cm) | 159" (404 cm) | 159" (404 cm) |
| Overall Width | 45.2" (114.8 cm) | 69.2" (175.8 cm) | 93.2" (236.7 cm) |
| Overall Height | 60.9" (154.7 cm) | 60.9" (154.7 cm) | 60.9" (154.7 cm) |
| Belt Width | 30" (76 cm) | 54" (137 cm) | 78" (198 cm) |
| Chamber Length | 108" (275 cm) | 108" (275 cm) | 108" (275 cm) |
| Chamber Infeed Width | 34.5" (88 cm) | 58.5" (149 cm) | 82.5" (209 cm) |
| Chamber Infeed Height (adjustable) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) |
| Heat Range (@ Heater) |
0-900F° (0-482C°) @ 240V | 0-900F° (0-482C°) @ 240V | 0-900F° (0-482C°) @ 240V |
| Total Wattage | 6 @ 2,600 = 15,600 Watts (15.6 kW) |
6 @ 5,200 = 31,200 Watts (31.2 kW) |
6 @ 7,800 = 46,800 Watts (46.8 kW) |
| Heater Size | 12" x 24" (30 x 61 cm) | 12" x 48" (30 x 122 cm) | 12" x 72" (30 x 183 cm) |
| Electrical Specs All ovens 50/60HZ |
240V, 1 Phase 3 wire 240V, 3 Phase 4 wire 400V, 3 Phase 5 wire 480V, 3 Phase 4 wire |
240V, 3 Phase 4 wire 400V, 3 Phase 5 wire 480V, 3 Phase 4 wire |
240V, 3 Phase 4 wire 400V, 3 Phase 5 wire 480V, 3 Phase 4 wire |
| Electrical Connection | All amps shown are FLA (Full Load Amps), not recommended line size! Ovens on this page must be hard-wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles 210.20(a), 215.3 and 310 of the NEC code. | ||
| Conveyor Belt Material | Teflon® coated fiberglass standard, Kevlar® mesh, Food Grade and other TPI available. (Limit 550°F/288°C) | ||
